AN178C40A | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN178C40A
Stock 36
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.25
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.740
MAX. HEAD THICKNESS
0.297
MIN. HEAD THICKNESS
0.265
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4991
MIN. BODY DIAMETER
0.4986
NOMINAL GRIP LENGTH
3.312
MAX. GRIP LENGTH
3.328
MIN. GRIP LENGTH
3.296
NOMINAL LENGTH
4.094
MAX. LENGTH
4.125
MIN. LENGTH
4.078
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.5000-20 UNF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

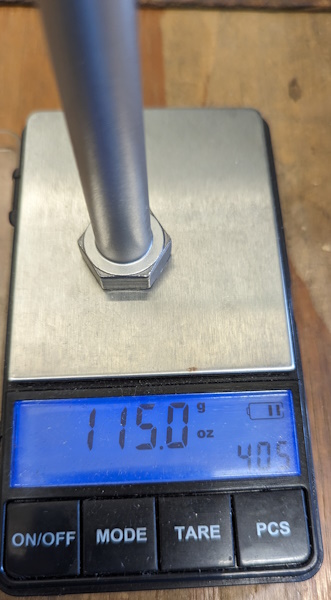

AN178C40A

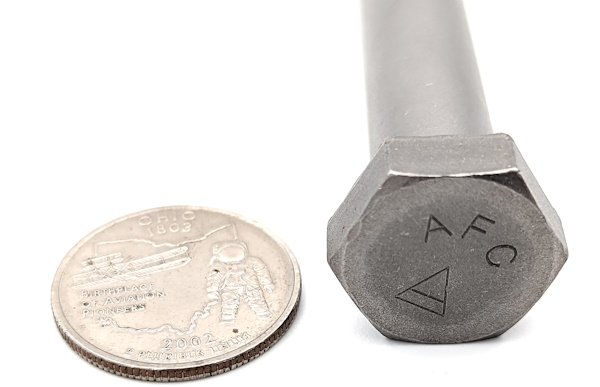

AN178C40A

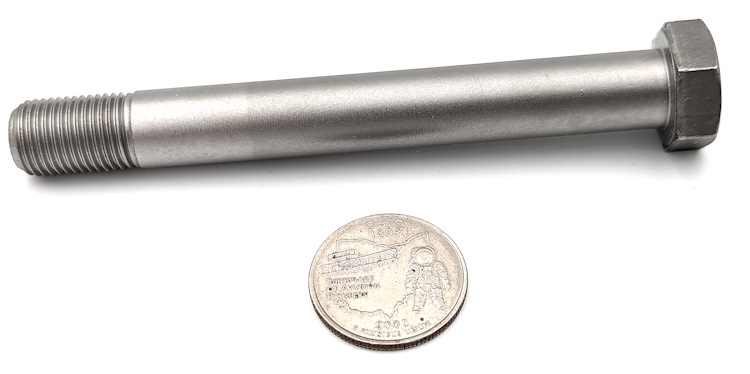

AN178C40A
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
