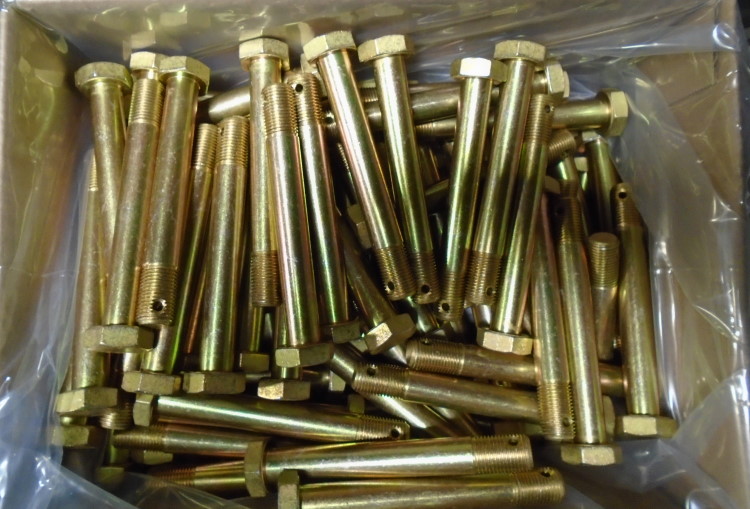

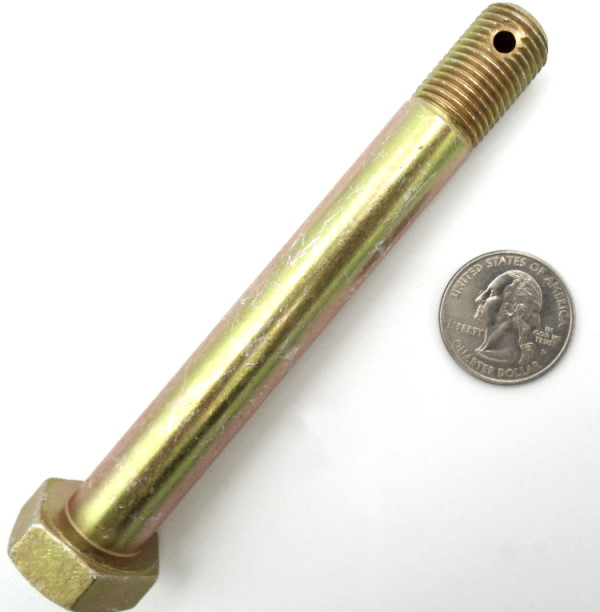

AN179-41 | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN179-41 |
| Stock |
160 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| Carton Quantity |
100 PER |
| REF PC Weight (LB) |
0.35 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MAX. HEAD THICKNESS
0.328
MIN. HEAD THICKNESS
0.296
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5616
MIN. BODY DIAMETER
0.5611
NOMINAL GRIP LENGTH
3.375
NOMINAL HOLE DIAMETER (SHANK)
0.141
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
GRADE
G40370, G86300, G87400, G41400, G86300,G87350, OR G41300
METALLURGICAL HARDNESS
HRC 26-32
FINISH
CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 3
THREAD SPECS
.5625-18 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
