| INVENTORY |
| Part Number |

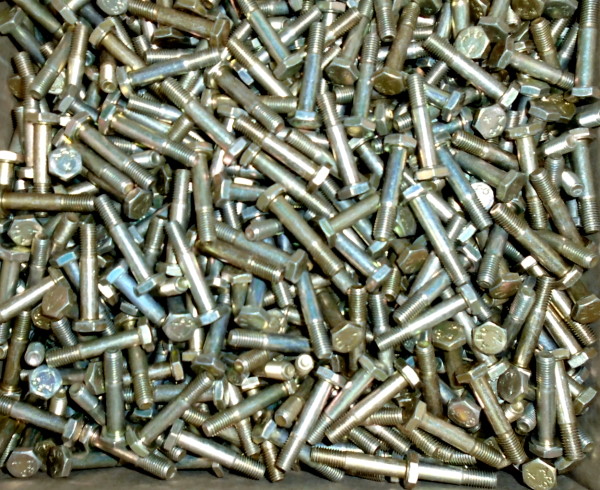

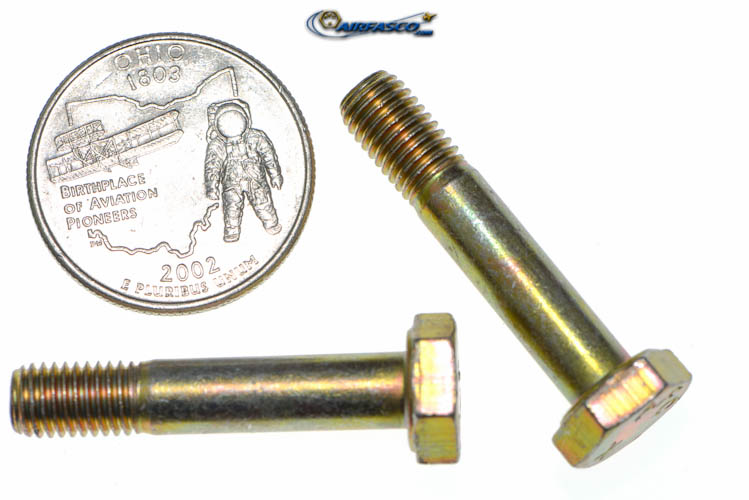

AN4-12A |
| NSN Number |
5306-00-151-1422 |
| Stock |
64,730 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
10 PER |
| Carton Quantity |
1,500 PER |
| REF PC Weight (LB) |
0.022 |
| Retail Price |
| Min Order QTY |
10 |
| Price |
$ 0.3400 /
EA |
Please login or register to receive better pricing.
| SPECIFICATIONS |
| Diameter |
Length
+.031" / -.016" |
Grip
± .016" |
Thread Length |
Material |
| 0.249" - 0.246" |
1.281" |
0.813" |
0.468" |
Alloy Steel |
| Grade |
Finish |
Thread Specs |
Locking Mechanism |
| 4037 or 8740 |
Cadmium Plated, AMS-QQ-P-416, TYPE II, CLASS 2 |
1/4-28 UNF-3A |
None |
| Diameter |
0.249" - 0.246" |
Length
+.031" / -.016" |
1.281" |
Grip
± .016" |
0.813" |
| Thread Length |
0.468" |
| Material |
Alloy Steel |
| Grade |
4037 or 8740 |
| Finish |
Cadmium Plated, AMS-QQ-P-416, TYPE II, CLASS 2 |
| Thread Specs |
1/4-28 UNF-3A |
| Locking Mechanism |
None |
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
