MS14144L10 | Nut, Castellated, Self-Locking

INVENTORY
Part Number MS14144L10
NSN Number 5310-01-274-9821
Stock 335
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.038
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
NUT FEATURES
SELF-LOCKING, LIGHTWEIGHT, CASTELLATED, 450F
MAX. OUTER DIAMETER (MAX)
0.910
MAX. HEIGHT (MAX)
0.734
MAX. HEIGHT (MIN)
0.704
MIN. BEARING SURFACE DIAMETER
0.875
THREAD SPECIFICATIONS
.6250-18 UNJF-3B
MIN. POINTS WIDTH
0.836
MAX. FLATS WIDTH
0.755
MIN. FLATS WIDTH
0.741
MATERIAL
Steel (UNS G10350, G10420, G10500, G11370, G11374, G40270, G40370, G86300, G87400)
MIN. AXIAL STRENGTH
34130 LBF
FINISH
PLATING PER AMS-QQ-P-416, TYPE AND CLASS OPTIONAL | MEETS SALT SPRAY PER AMS-QQ-P-416 TYPE II | DRY FILM LUBE PER NASM25027
LOCKING MECHANISM
Self-locking & Castellated
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of MS14144 REV. C (for latest print see NASM14144)
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

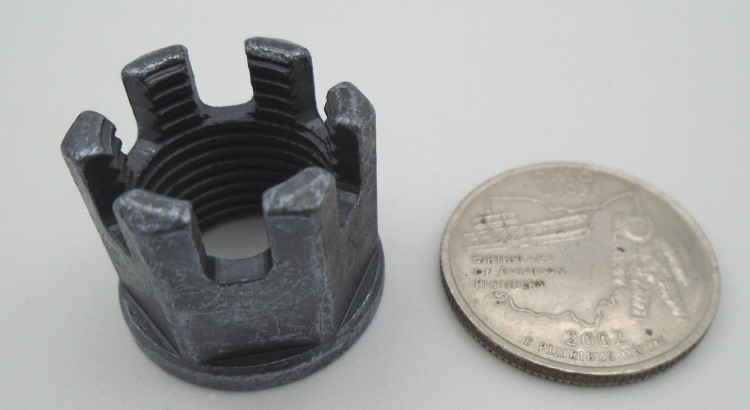

MS14144L10

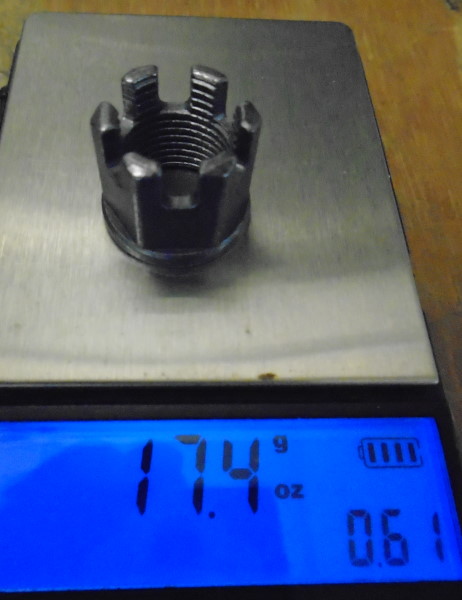

MS14144L10
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
