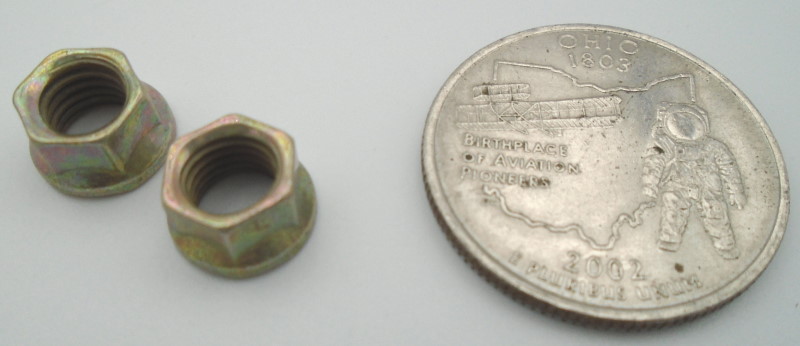

MS21042-4 | NUT, HEXAGON SELF-LOCKING
CONDITIONS OF ACCEPTANCE: THE SPECIFICATIONS WERE INTENTED FOR WEIGHT SAVING APPLICATIONS HAVING THIN WALLS AND INSPECT AND USE WITHIN THE LIMITATIONS OF NASM33588
| INVENTORY |
| Part Number |
MS21042-4 |
| NSN Number |
5310-00-807-1468 |
| Stock |
0 |
| Condition |
NEW |
| Unit of Measure |
EA |
| Packaged Amount |
100 PER |

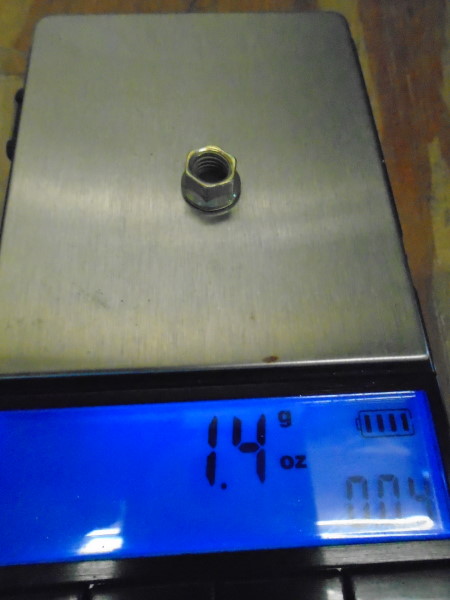

| REF PC Weight (LB) |
0.0031 |
TIME TO MANUFACTURE
INQUIRE
A new lot is currently in production. Please inquire for a current lead time.
| Retail Price |
| Min Order QTY |
100 |
| Price |
$ 0.5000 /
EA |
Please login or register to receive better pricing.
MAX. OUTER DIAMETER (MAX)
.420
MIN. BEARING SURFACE DIAMETER
.386
THREAD SPECIFICATIONS
.2500-28 UNJF-3B
MIN. AXIAL STRENGTH
6200 LBF
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
LOCKING MECHANISM
Self-Locking
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
