NAS517-3-5 | SCREW, SHEAR

INVENTORY
Part Number NAS517-3-5
NSN Number 5305-00-639-0047
Stock 58,370
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.0057
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. HEAD DIAMETER
0.387
MIN. HEAD DIAMETER
0.337
HEAD RECESS
PER NASM9006
MAX. BODY DIAMETER
0.1890
MIN. BODY DIAMETER
0.1860
NOMINAL GRIP LENGTH
0.312
MAX. GRIP LENGTH
0.327
MIN. GRIP LENGTH
0.297
NOMINAL TOTAL LENGTH
0.719
MAX. TOTAL LENGTH
0.749
MIN. TOTAL LENGTH
0.704
MATERIAL
UNS G41300, UNS G41400, UNS G43400, UNS G43406, OR UNS G87400
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
Cadmium Plate Per AMS-QQ-P-416 TYPE II, CLASS 2
THREAD SPECS
.1900-32 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

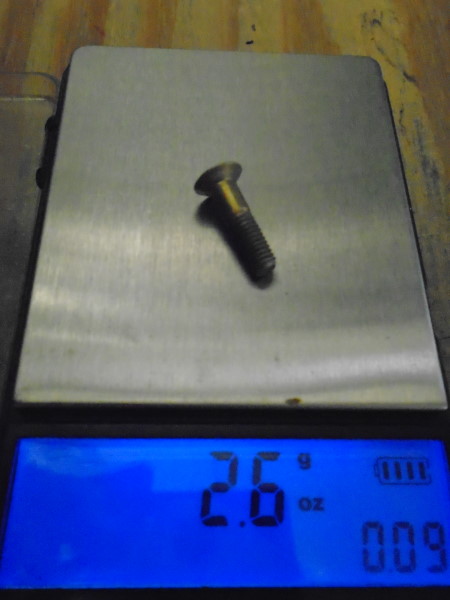

NAS517-3-5

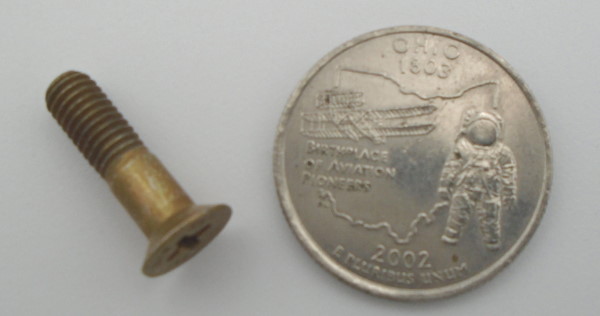

NAS517-3-5
×
