NAS517-7-30 | SCREW, SHEAR

INVENTORY
Part Number NAS517-7-30
Stock 14
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.114
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. HEAD DIAMETER
0.894
MIN. HEAD DIAMETER
0.812
HEAD RECESS
PER NASM9006
MAX. BODY DIAMETER
0.4365
MIN. BODY DIAMETER
0.4325
NOMINAL GRIP LENGTH
1.875
MAX. GRIP LENGTH
1.890
MIN. GRIP LENGTH
1.860
NOMINAL TOTAL LENGTH
2.594
MAX. TOTAL LENGTH
2.624
MIN. TOTAL LENGTH
2.579
MATERIAL
UNS G41300, UNS G41400, UNS G43400, UNS G43406, OR UNS G87400
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
Cadmium Plate Per AMS-QQ-P-416 TYPE II, CLASS 2
THREAD SPECS
.4375-20 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

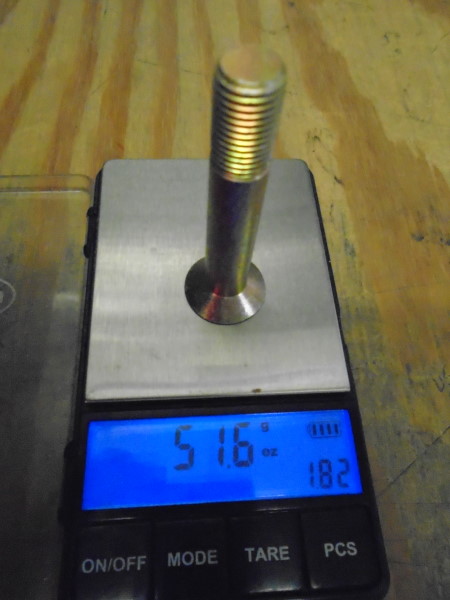

NAS517-7-30

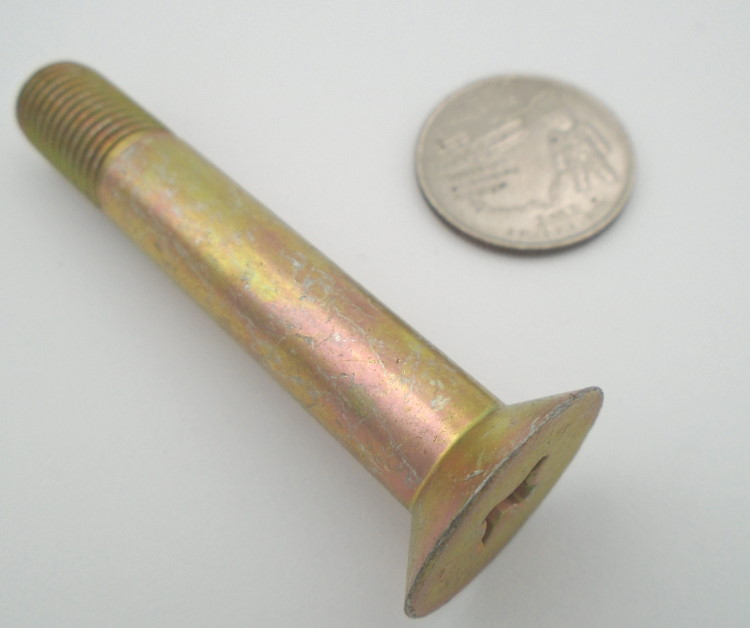

NAS517-7-30
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
