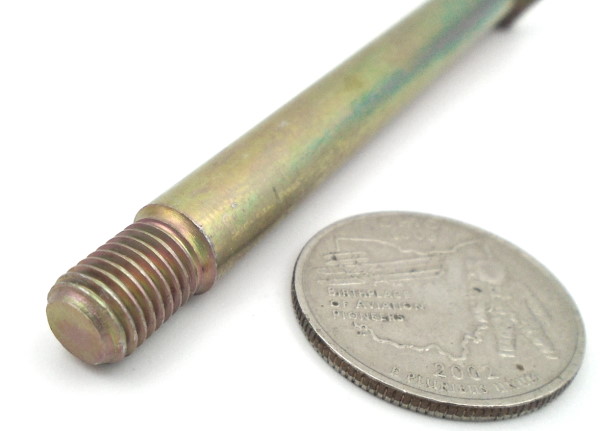

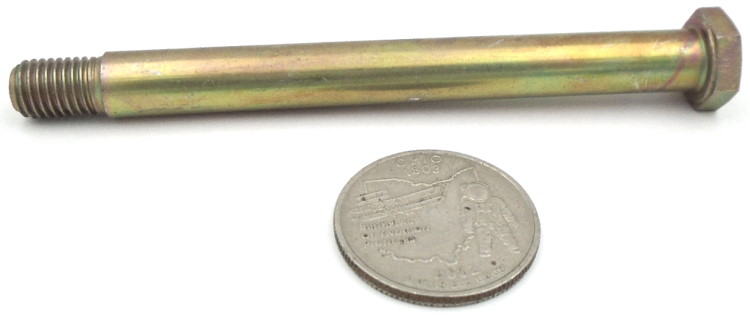

NAS6205-50Y | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6205-50Y |
| Stock |
58 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.098 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.492
MIN. POINTS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.171
MIN. HEAD THICKNESS
0.156
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3432
MIN. BODY DIAMETER
0.3422
NOMINAL GRIP LENGTH
3.125
NOMINAL TOTAL LENGTH
3.563
MAX. MAJOR DIAMETER (THREADS)
0.3060
MIN. MAJOR DIAMETER (THREADS)
0.3020
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.3125-24 UNJF-3A
