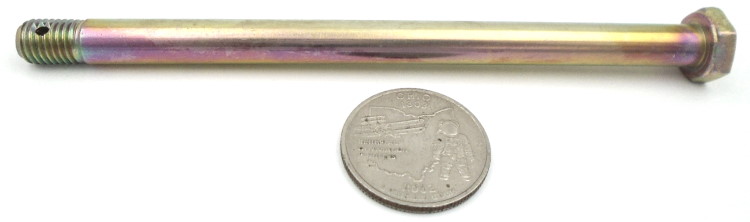

NAS6205-68D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6205-68D |
| Stock |
130 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.107 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.492
MIN. POINTS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.171
MIN. HEAD THICKNESS
0.156
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3120
MIN. BODY DIAMETER
0.3110
NOMINAL GRIP LENGTH
4.250
NOMINAL TOTAL LENGTH
4.688
MAX. MAJOR DIAMETER (THREADS)
0.3060
MIN. MAJOR DIAMETER (THREADS)
0.3020
NOMINAL HOLE DIAMETER (SHANK)
0.081
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.3125-24 UNJF-3A
LOCKING MECHANISM
Drilled Threads
