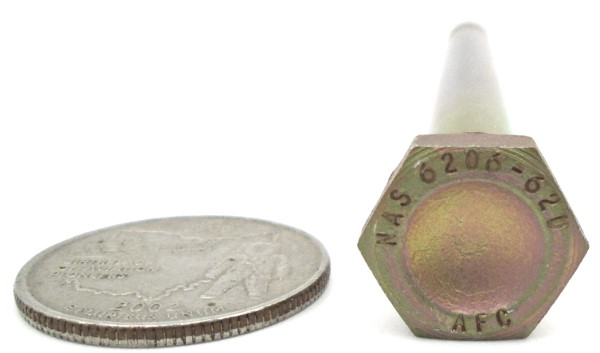

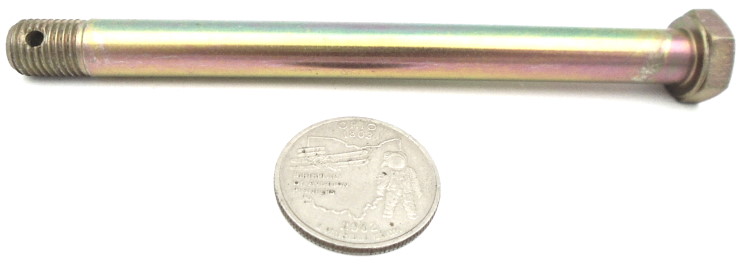

NAS6206-62D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6206-62D |
| NSN Number |
5306-01-305-2566 |
| Stock |
125 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.145 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.564
MIN. FLATS WIDTH (HEAD)
0.554
MIN. POINTS WIDTH (HEAD)
0.623
MAX. HEAD THICKNESS
0.203
MIN. HEAD THICKNESS
0.188
MIN. WASHER FACE DIAMETER
0.523
MAX. BODY DIAMETER
0.3745
MIN. BODY DIAMETER
0.3735
NOMINAL GRIP LENGTH
3.875
NOMINAL TOTAL LENGTH
4.329
MAX. MAJOR DIAMETER (THREADS)
0.3680
MIN. MAJOR DIAMETER (THREADS)
0.3640
NOMINAL HOLE DIAMETER (SHANK)
0.111
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.3750-24 UNJF-3A
LOCKING MECHANISM
Drilled Threads
