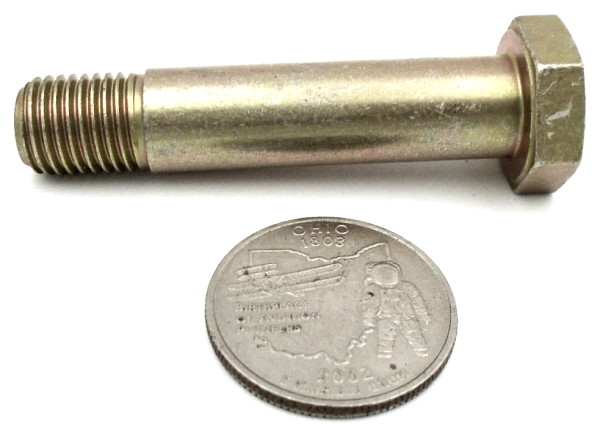

NAS6207-25X | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6207-25X |
| Stock |
156 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.114 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.690
MIN. FLATS WIDTH (HEAD)
0.678
MIN. POINTS WIDTH (HEAD)
0.764
MAX. HEAD THICKNESS
0.234
MIN. HEAD THICKNESS
0.219
MIN. WASHER FACE DIAMETER
0.648
MAX. BODY DIAMETER
0.4526
MIN. BODY DIAMETER
0.4516
NOMINAL GRIP LENGTH
1.562
NOMINAL TOTAL LENGTH
2.090
MAX. MAJOR DIAMETER (THREADS)
0.4310
MIN. MAJOR DIAMETER (THREADS)
0.4260
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.4375-20 UNJF-3A
