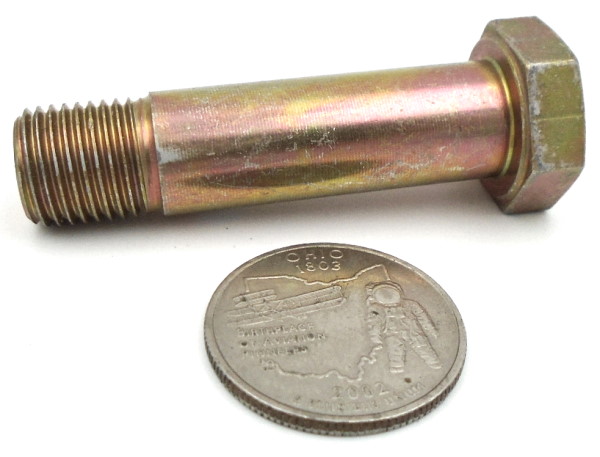

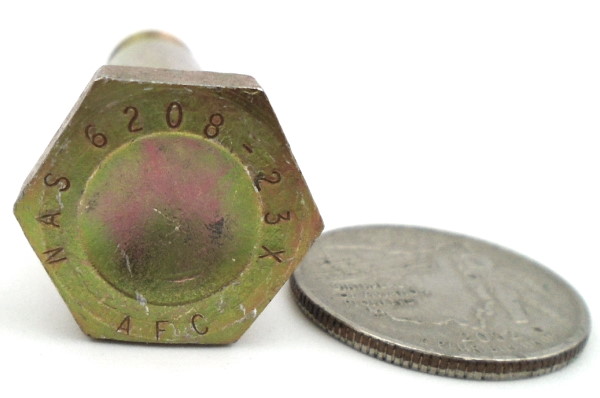

NAS6208-23X | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6208-23X |
| Stock |
14 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.144 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.741
MIN. POINTS WIDTH (HEAD)
0.836
MAX. HEAD THICKNESS
0.265
MIN. HEAD THICKNESS
0.250
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.5151
MIN. BODY DIAMETER
0.5141
NOMINAL GRIP LENGTH
1.438
NOMINAL TOTAL LENGTH
1.966
MAX. MAJOR DIAMETER (THREADS)
0.4930
MIN. MAJOR DIAMETER (THREADS)
0.4880
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.5000-20 UNJF-3A
