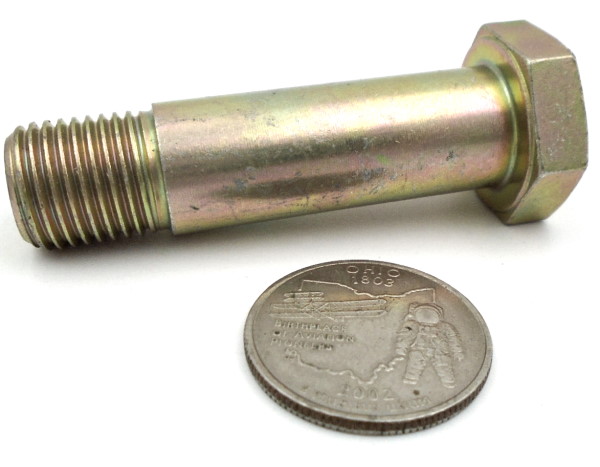

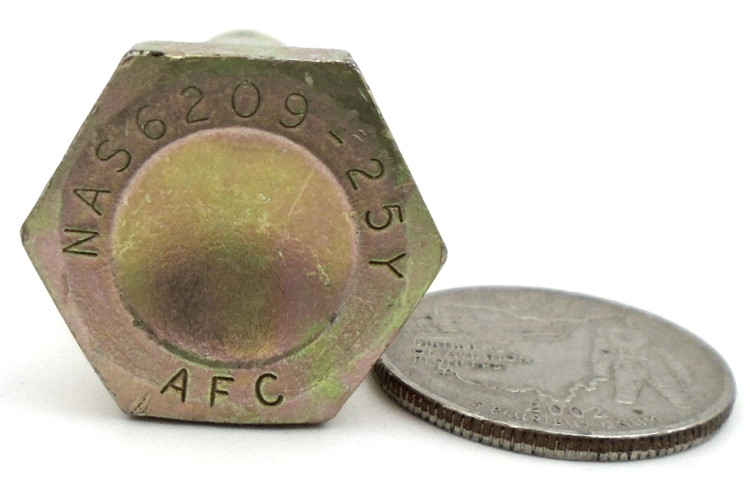

NAS6209-25Y | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6209-25Y |
| Stock |
176 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.21 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MIN. POINTS WIDTH (HEAD)
0.978
MAX. HEAD THICKNESS
0.296
MIN. HEAD THICKNESS
0.281
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5927
MIN. BODY DIAMETER
0.5917
NOMINAL GRIP LENGTH
1.562
NOMINAL TOTAL LENGTH
2.156
MAX. MAJOR DIAMETER (THREADS)
0.5550
MIN. MAJOR DIAMETER (THREADS)
0.5500
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.5625-18 UNJF-3A
