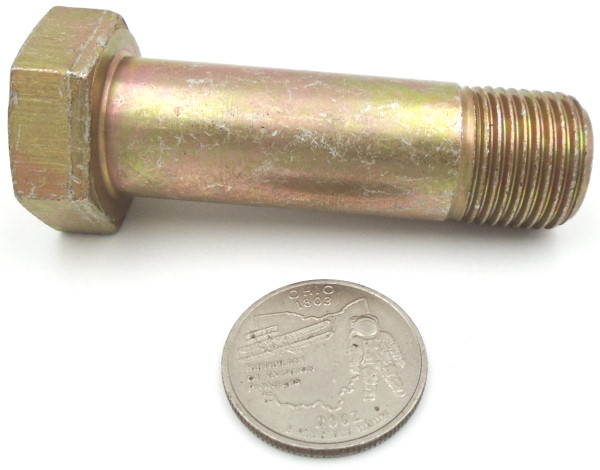

NAS6212-28 | BOLT, TENSION
| INVENTORY |
| Part Number |
NAS6212-28 |
| Stock |
175 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.39 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.065
MIN. FLATS WIDTH (HEAD)
1.052
MIN. POINTS WIDTH (HEAD)
1.191
MAX. HEAD THICKNESS
0.390
MIN. HEAD THICKNESS
0.375
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7490
MIN. BODY DIAMETER
0.7480
NOMINAL GRIP LENGTH
1.750
NOMINAL TOTAL LENGTH
2.416
MAX. MAJOR DIAMETER (THREADS)
0.7430
MIN. MAJOR DIAMETER (THREADS)
0.7370
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.7500-16 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
