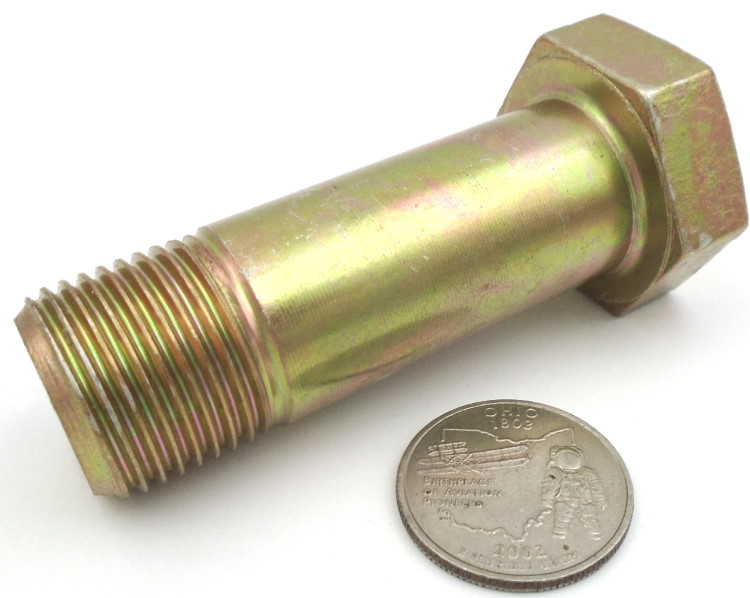

NAS6214-28 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6214-28 |
| Stock |
1 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.56 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.252
MIN. FLATS WIDTH (HEAD)
1.239
MIN. POINTS WIDTH (HEAD)
1.405
MAX. HEAD THICKNESS
0.453
MIN. HEAD THICKNESS
0.438
MIN. WASHER FACE DIAMETER
1.210
MAX. BODY DIAMETER
0.8740
MIN. BODY DIAMETER
0.8730
NOMINAL GRIP LENGTH
1.750
NOMINAL TOTAL LENGTH
2.509
MAX. MAJOR DIAMETER (THREADS)
0.8680
MIN. MAJOR DIAMETER (THREADS)
0.8610
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.8750-14 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
