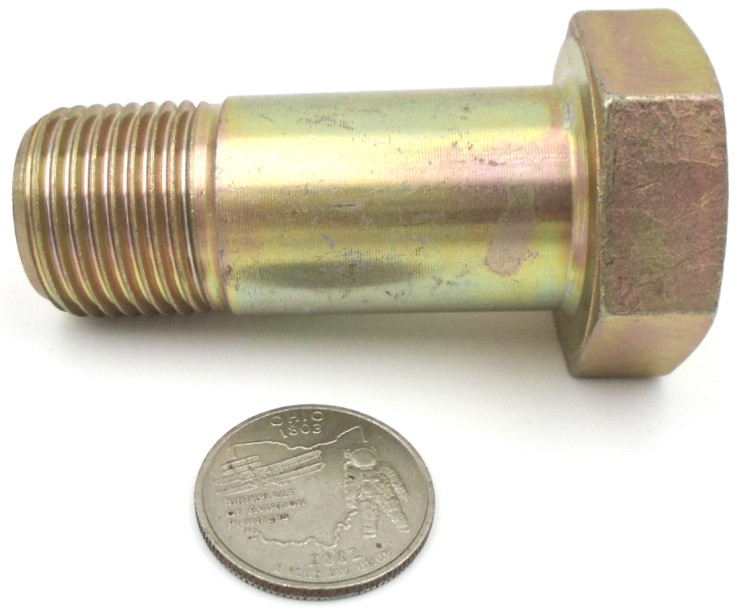

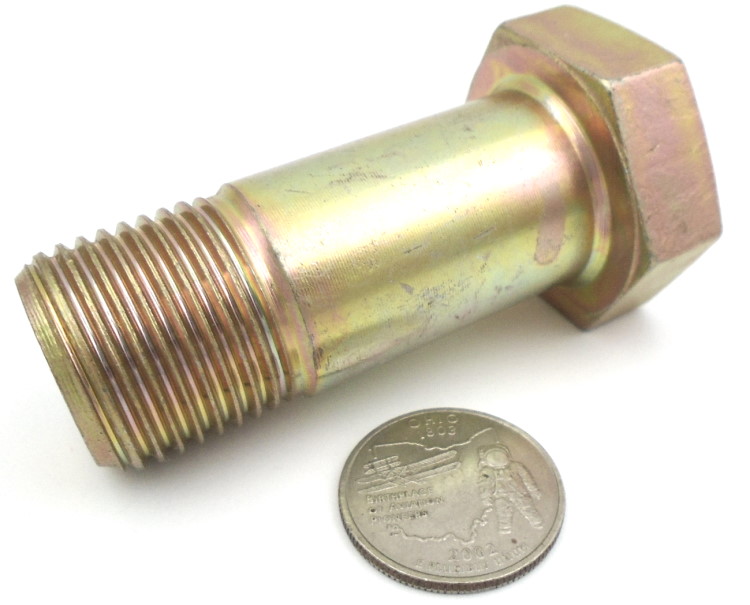

NAS6216-24X | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6216-24X |
| Stock |
19 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.75 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.440
MIN. FLATS WIDTH (HEAD)
1.427
MIN. POINTS WIDTH (HEAD)
1.619
MAX. HEAD THICKNESS
0.515
MIN. HEAD THICKNESS
0.500
MIN. WASHER FACE DIAMETER
1.398
MAX. BODY DIAMETER
1.0146
MIN. BODY DIAMETER
1.0136
NOMINAL GRIP LENGTH
1.500
NOMINAL TOTAL LENGTH
2.395
MAX. MAJOR DIAMETER (THREADS)
0.9930
MIN. MAJOR DIAMETER (THREADS)
0.9860
MATERIAL
Alloy Steel (UNS: G41400, G43406, G8740)
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
1.0000-12 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
