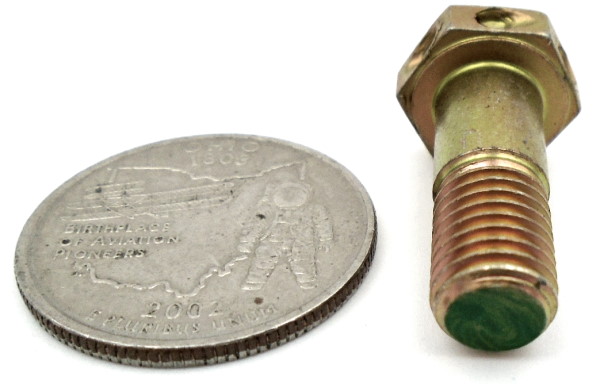

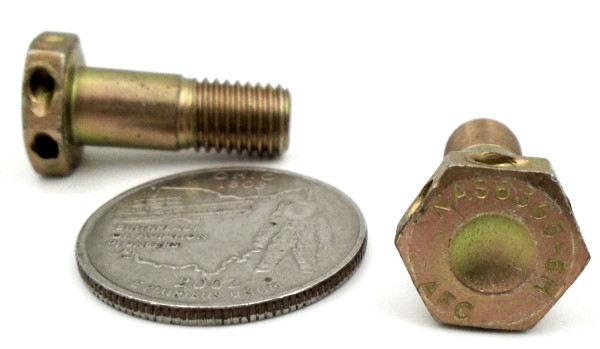

NAS6305-6H | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6305-6H |
| Stock |
100 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.024 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.492
MIN. POINTS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.171
MIN. HEAD THICKNESS
0.156
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3120
MIN. BODY DIAMETER
0.3110
NOMINAL GRIP LENGTH
0.376
NOMINAL TOTAL LENGTH
0.814
MAX. MAJOR DIAMETER (THREADS)
0.3060
MIN. MAJOR DIAMETER (THREADS)
0.3020
MAX. HOLE DIAMETER (HEAD)
0.080
MIN. HOLE DIAMETER (HEAD)
0.070
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.3125-24 UNJF-3A
LOCKING MECHANISM
Drilled Head
