NAS6609-20Y | TENSION BOLT

INVENTORY
Part Number NAS6609-20Y
Stock 66
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.197
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MIN. POINTS WIDTH (HEAD)
0.978
MAX. HEAD THICKNESS
0.296
MIN. HEAD THICKNESS
0.281
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5927
MIN. BODY DIAMETER
0.5917
NOMINAL GRIP LENGTH
1.250
MAX. GRIP LENGTH
1.260
MIN. GRIP LENGTH
1.240
NOMINAL TOTAL LENGTH
2.090
MAX. TOTAL LENGTH
2.105
MIN. TOTAL LENGTH
2.075
MAX. MAJOR DIAMETER (THREADS)
0.555
MIN. MAJOR DIAMETER (THREADS)
0.550
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.5625-18 UNJF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

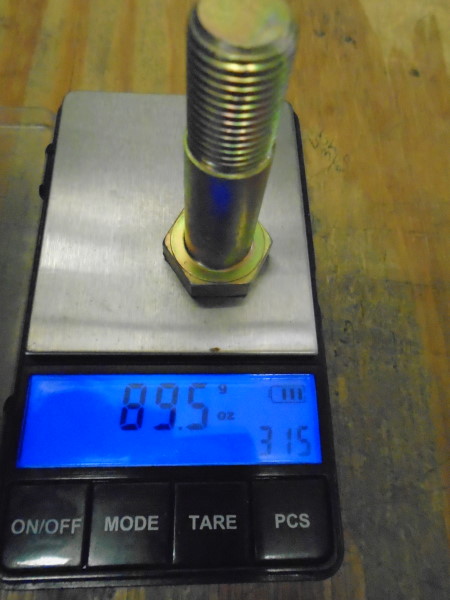

NAS6609-20Y

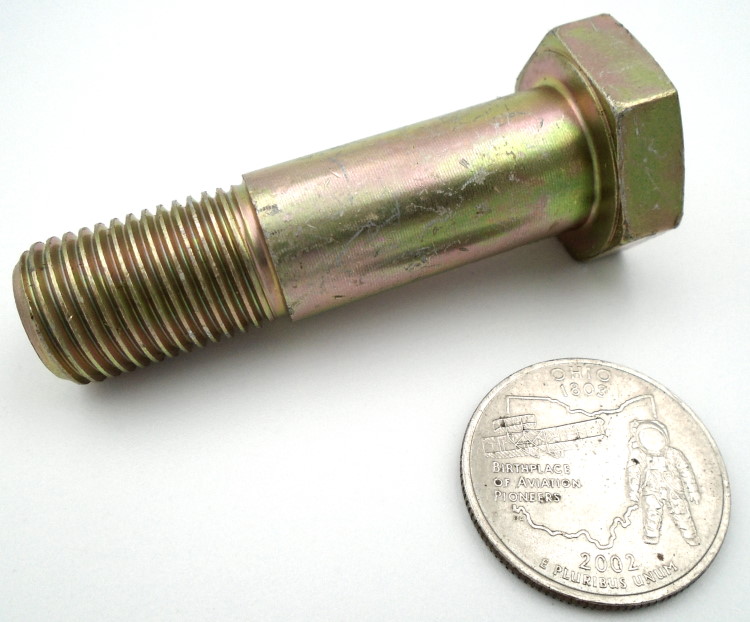

NAS6609-20Y
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
