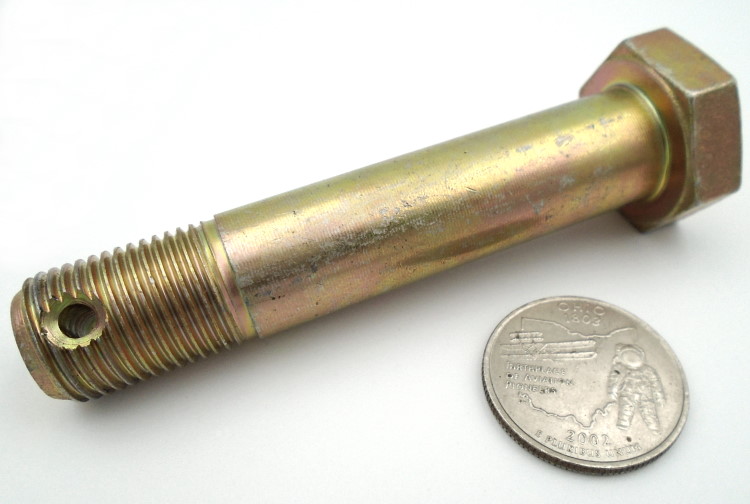

NAS6610D35 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6610D35 |
| Stock |
78 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

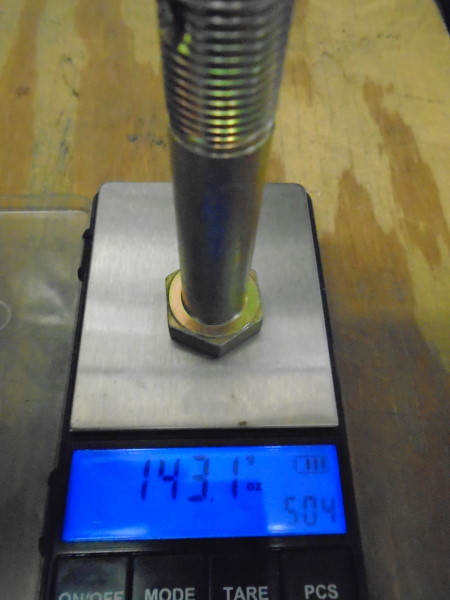

| REF PC Weight (LB) |
0.32 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MIN. POINTS WIDTH (HEAD)
1.050
MAX. HEAD THICKNESS
0.327
MIN. HEAD THICKNESS
0.312
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6240
MIN. BODY DIAMETER
0.6230
NOMINAL GRIP LENGTH
2.188
NOMINAL TOTAL LENGTH
3.090
MAX. MAJOR DIAMETER (THREADS)
0.618
MIN. MAJOR DIAMETER (THREADS)
0.612
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.6250-18 UNJF-3A
LOCKING MECHANISM
Drilled Threads
