NAS6612-20Y | TENSION BOLT

INVENTORY
Part Number NAS6612-20Y
Stock 30
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.38
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
1.065
MIN. FLATS WIDTH (HEAD)
1.052
MIN. POINTS WIDTH (HEAD)
1.191
MAX. HEAD THICKNESS
0.390
MIN. HEAD THICKNESS
0.375
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7802
MIN. BODY DIAMETER
0.7792
NOMINAL GRIP LENGTH
1.250
MAX. GRIP LENGTH
1.260
MIN. GRIP LENGTH
1.240
NOMINAL TOTAL LENGTH
2.291
MAX. TOTAL LENGTH
2.306
MIN. TOTAL LENGTH
2.276
MAX. MAJOR DIAMETER (THREADS)
0.743
MIN. MAJOR DIAMETER (THREADS)
0.737
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.7500-16 UNJF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

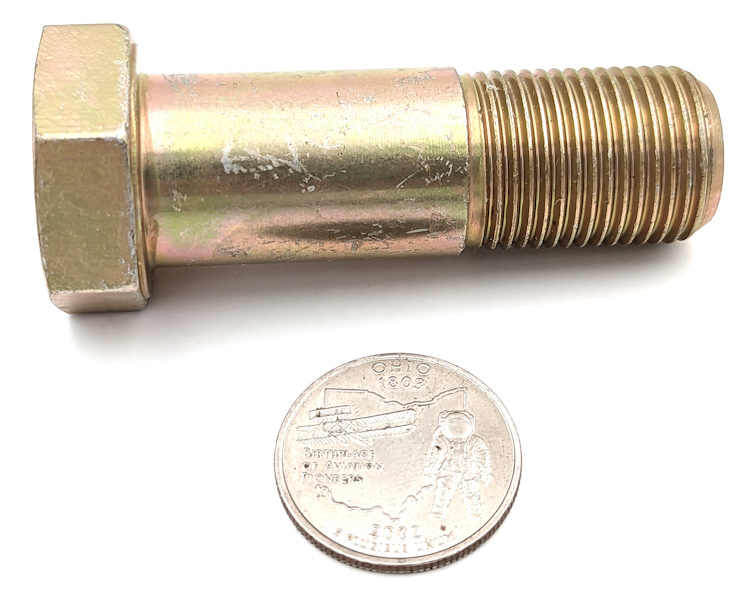

NAS6612-20Y

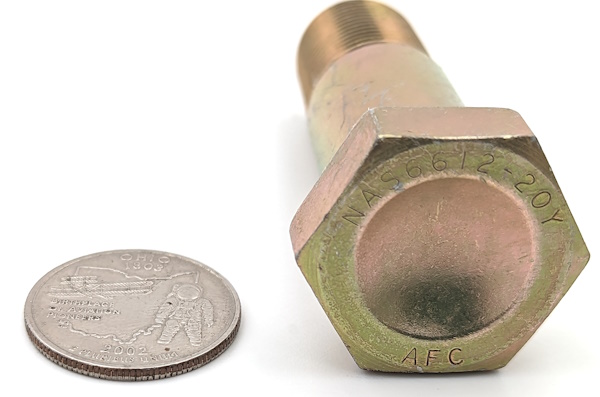

NAS6612-20Y
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
