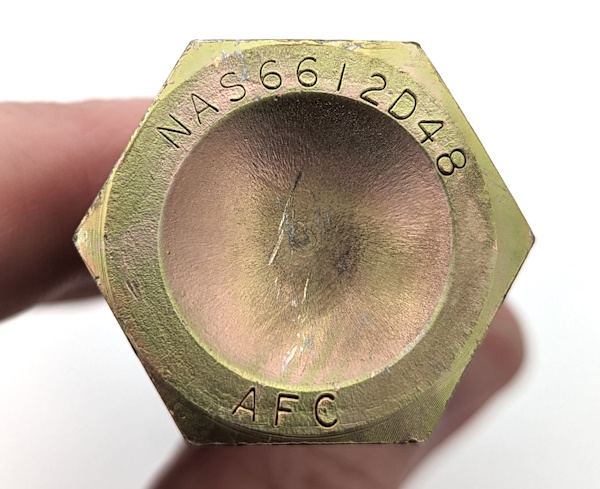

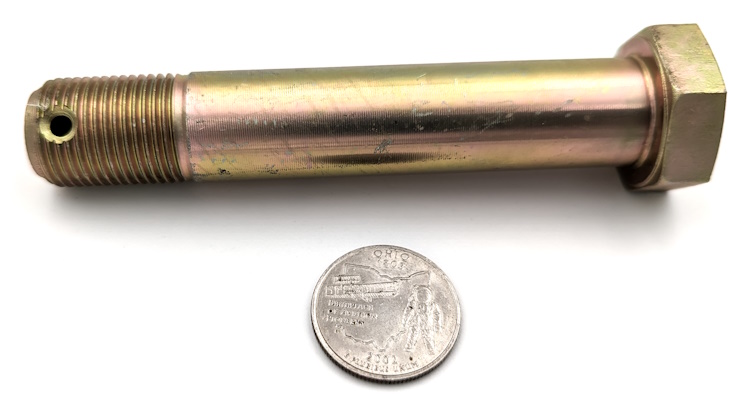

NAS6612D48 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6612D48 |
| NSN Number |
5306-01-313-9187 |
| Stock |
2 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

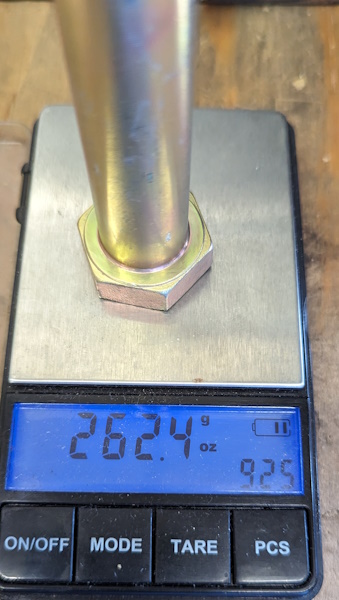

| REF PC Weight (LB) |
0.58 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.065
MIN. FLATS WIDTH (HEAD)
1.052
MIN. POINTS WIDTH (HEAD)
1.191
MAX. HEAD THICKNESS
0.390
MIN. HEAD THICKNESS
0.375
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7490
MIN. BODY DIAMETER
0.7480
NOMINAL GRIP LENGTH
3.000
NOMINAL TOTAL LENGTH
4.041
MAX. MAJOR DIAMETER (THREADS)
0.743
MIN. MAJOR DIAMETER (THREADS)
0.737
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.7500-16 UNJF-3A
LOCKING MECHANISM
Drilled Threads
