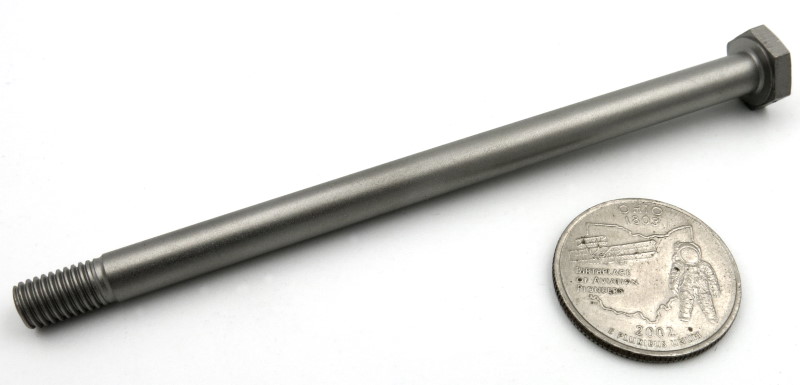

NAS6704U59 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6704U59 |
| Stock |
32 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

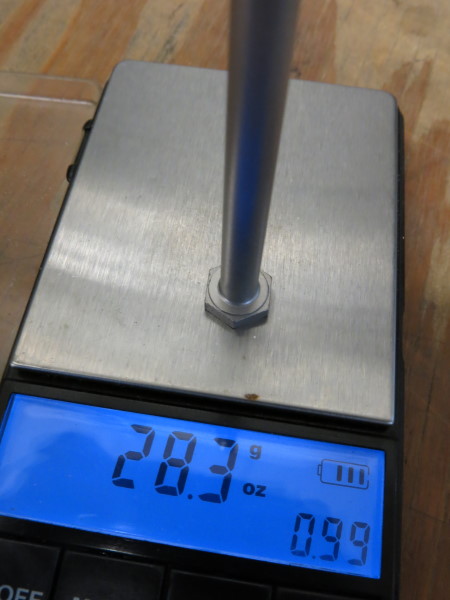

| REF PC Weight (LB) |
0.062 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.439
MIN. FLATS WIDTH (HEAD)
0.429
MIN. POINTS WIDTH (HEAD)
0.480
MAX. HEAD THICKNESS
0.140
MIN. HEAD THICKNESS
0.125
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2495
MIN. BODY DIAMETER
0.2490
NOMINAL GRIP LENGTH
3.688
NOMINAL TOTAL LENGTH
4.113
MAX. MAJOR DIAMETER (THREADS)
0.244
MIN. MAJOR DIAMETER (THREADS)
0.241
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
.2500-28 UNJF-3A
