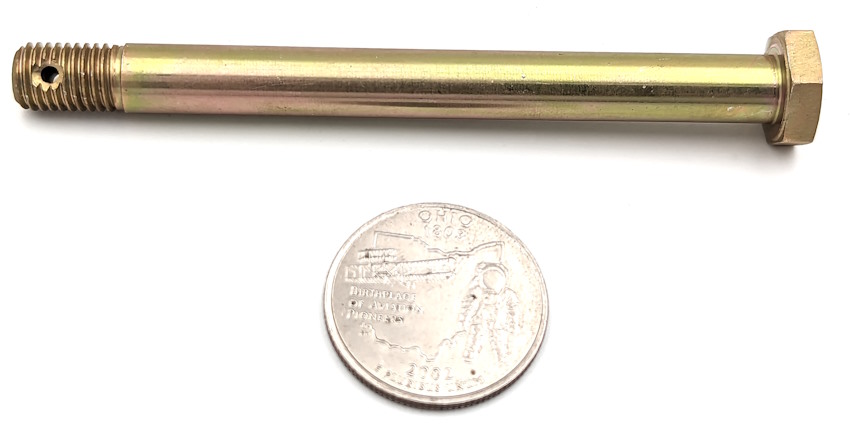

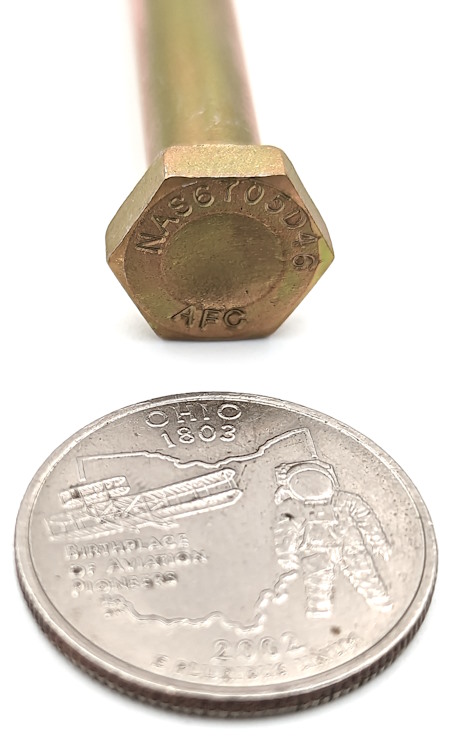

NAS6705D46 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6705D46 |
| Stock |
161 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.080 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.492
MIN. POINTS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.171
MIN. HEAD THICKNESS
0.156
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3120
MIN. BODY DIAMETER
0.3110
NOMINAL GRIP LENGTH
2.875
NOMINAL TOTAL LENGTH
3.344
MAX. MAJOR DIAMETER (THREADS)
0.306
MIN. MAJOR DIAMETER (THREADS)
0.302
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH

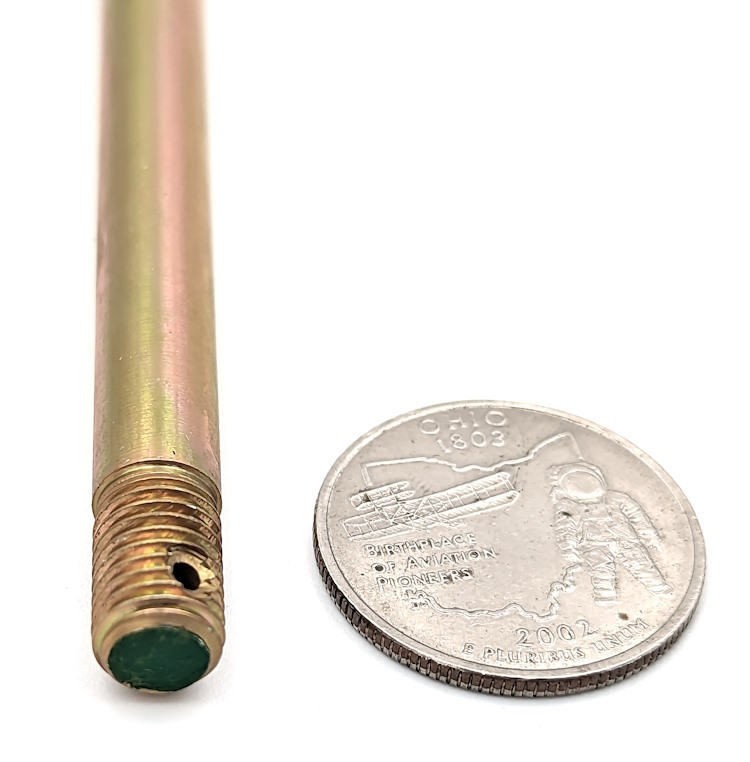

CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.3125-24 UNJF-3A
LOCKING MECHANISM
Drilled Threads
