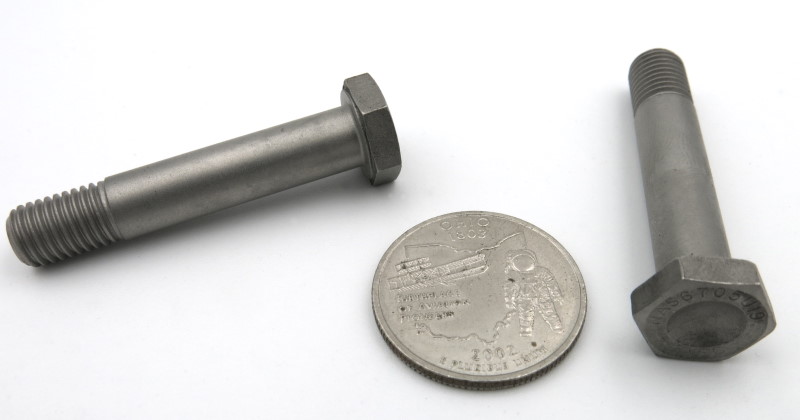

NAS6705U19 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6705U19 |
| Stock |
202 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

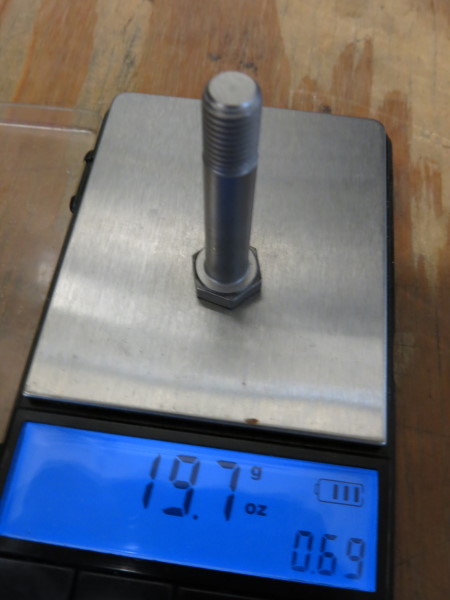

| REF PC Weight (LB) |
0.043 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.492
MIN. POINTS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.171
MIN. HEAD THICKNESS
0.156
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3120
MIN. BODY DIAMETER
0.3115
NOMINAL GRIP LENGTH
1.188
NOMINAL TOTAL LENGTH
1.657
MAX. MAJOR DIAMETER (THREADS)
0.306
MIN. MAJOR DIAMETER (THREADS)
0.302
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
.3125-24 UNJF-3A
