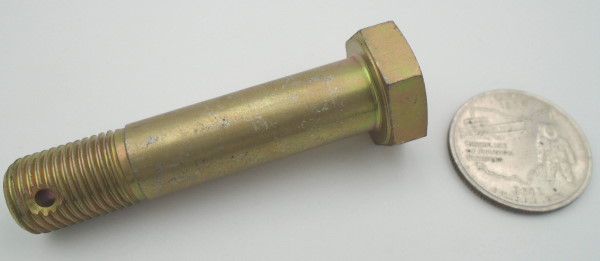

NAS6708D24 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6708D24 |
| NSN Number |
5306-01-531-0803 |
| Stock |
17 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

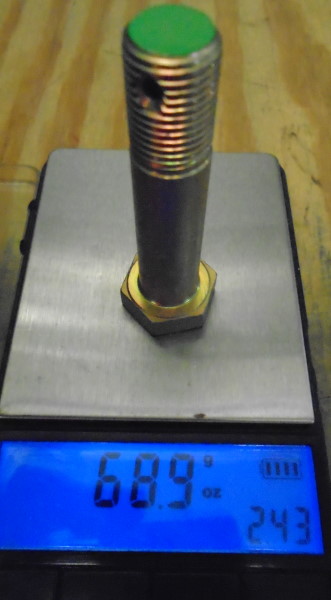

| REF PC Weight (LB) |
0.152 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.741
MIN. POINTS WIDTH (HEAD)
0.836
MAX. HEAD THICKNESS
0.265
MIN. HEAD THICKNESS
0.250
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4995
MIN. BODY DIAMETER
0.4985
NOMINAL GRIP LENGTH
1.500
NOMINAL TOTAL LENGTH
2.235
MAX. MAJOR DIAMETER (THREADS)
0.493
MIN. MAJOR DIAMETER (THREADS)
0.488
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.5000-20 UNJF-3A
LOCKING MECHANISM
Drilled Threads
