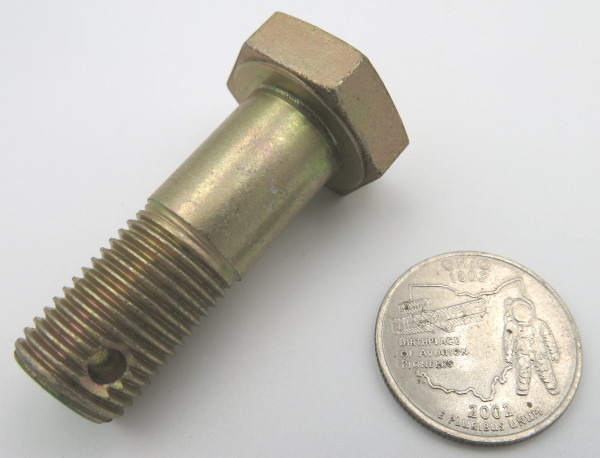

NAS6709D12 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6709D12 |
| Stock |
110 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

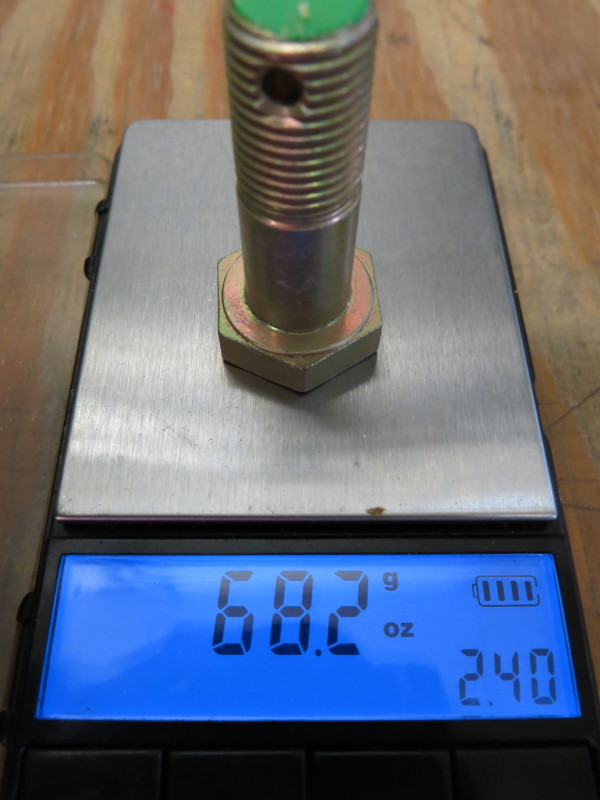

| REF PC Weight (LB) |
0.150 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MIN. POINTS WIDTH (HEAD)
0.978
MAX. HEAD THICKNESS
0.296
MIN. HEAD THICKNESS
0.281
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5615
MIN. BODY DIAMETER
0.5605
NOMINAL GRIP LENGTH
0.750
NOMINAL TOTAL LENGTH
1.590
MAX. MAJOR DIAMETER (THREADS)
0.555
MIN. MAJOR DIAMETER (THREADS)
0.550
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.5625-18 UNJF-3A
LOCKING MECHANISM
Drilled Threads
