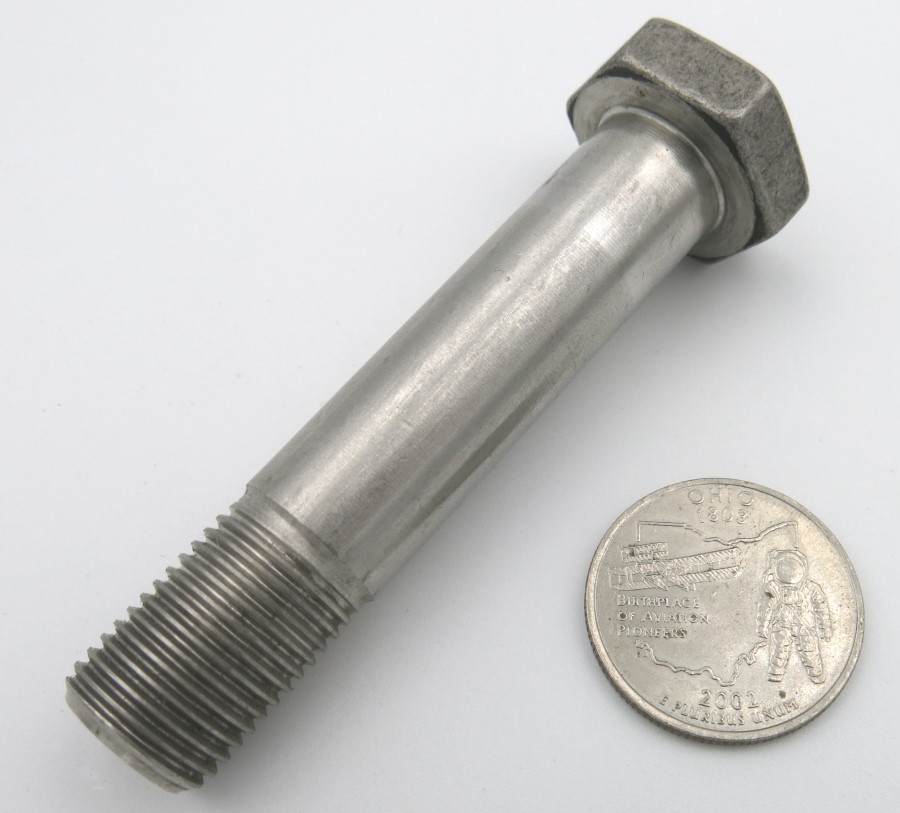

NAS6709U30 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6709U30 |
| Stock |
24 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

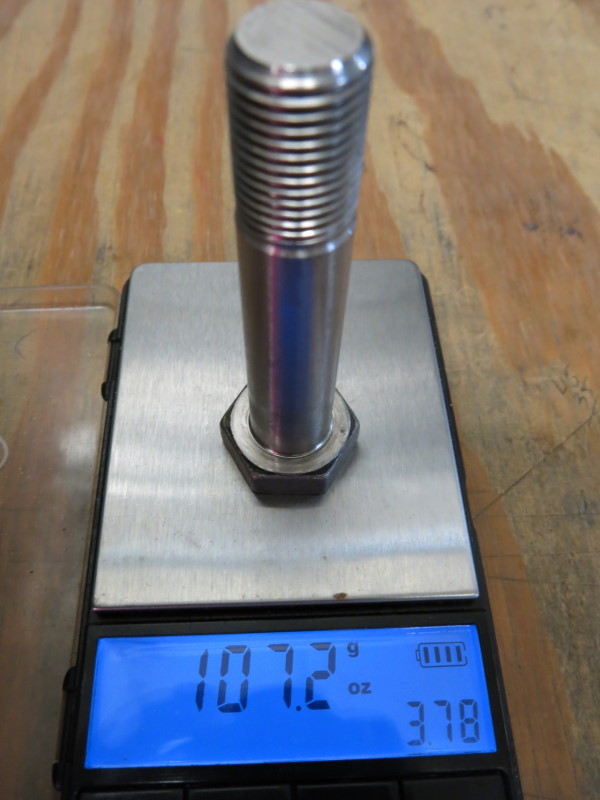

| REF PC Weight (LB) |
0.24 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MIN. POINTS WIDTH (HEAD)
0.978
MAX. HEAD THICKNESS
0.296
MIN. HEAD THICKNESS
0.281
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5615
MIN. BODY DIAMETER
0.5610
NOMINAL GRIP LENGTH
1.875
NOMINAL TOTAL LENGTH
2.715
MAX. MAJOR DIAMETER (THREADS)
0.555
MIN. MAJOR DIAMETER (THREADS)
0.550
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
.5625-18 UNJF-3A
