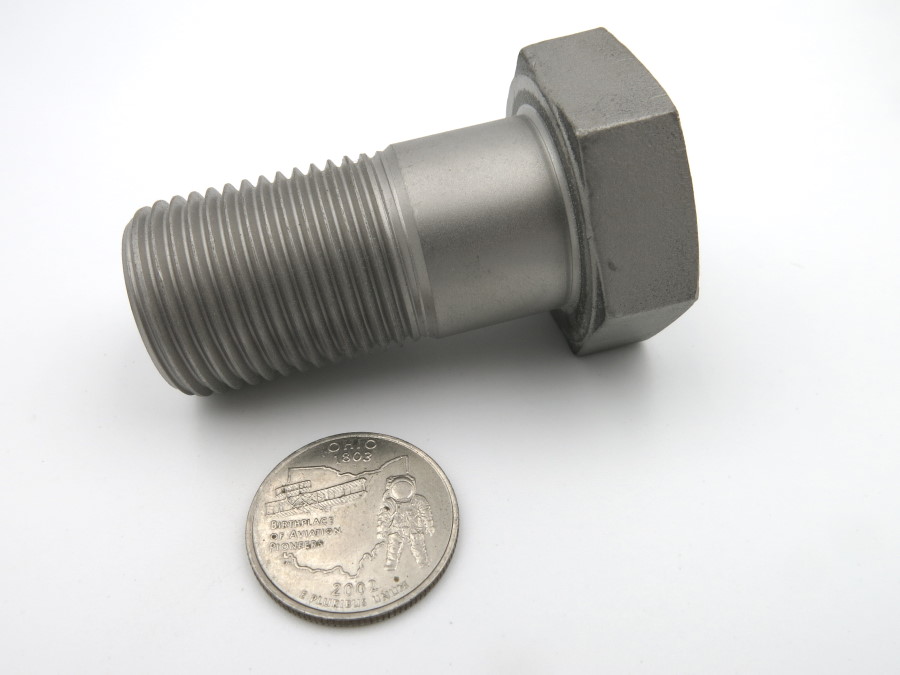

NAS6716U11 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6716U11 |
| Stock |
21 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

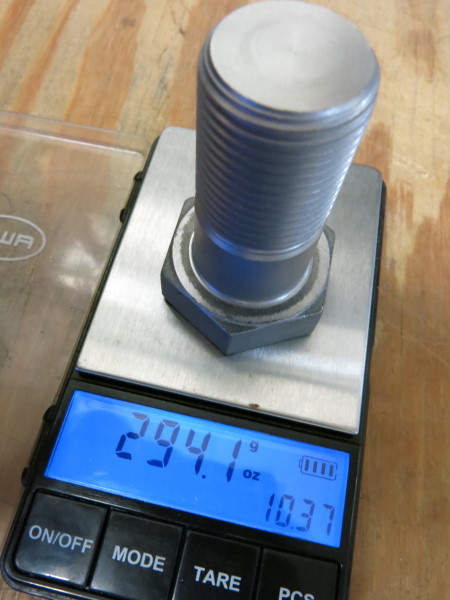

| REF PC Weight (LB) |
0.65 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.440
MIN. FLATS WIDTH (HEAD)
1.427
MIN. POINTS WIDTH (HEAD)
1.619
MAX. HEAD THICKNESS
0.515
MIN. HEAD THICKNESS
0.500
MIN. WASHER FACE DIAMETER
1.398
MAX. BODY DIAMETER
0.9990
MIN. BODY DIAMETER
0.9985
NOMINAL GRIP LENGTH
0.688
NOMINAL TOTAL LENGTH
1.997
MAX. MAJOR DIAMETER (THREADS)
0.993
MIN. MAJOR DIAMETER (THREADS)
0.986
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
1.0000-12 UNJF-3A
