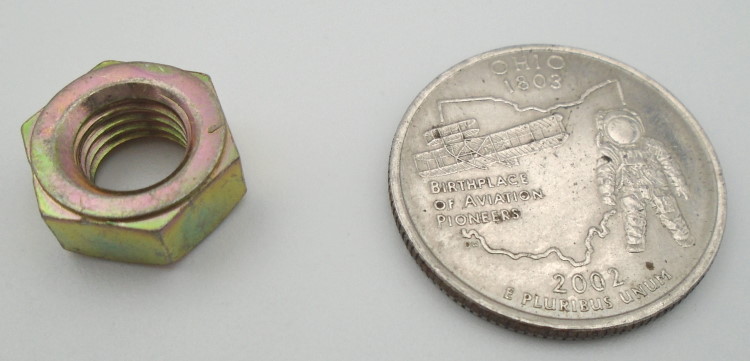

AN315-5R | Nut, Hexagon

INVENTORY
Part Number AN315-5R
NSN Number 5310-00-167-1345
Stock 0
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

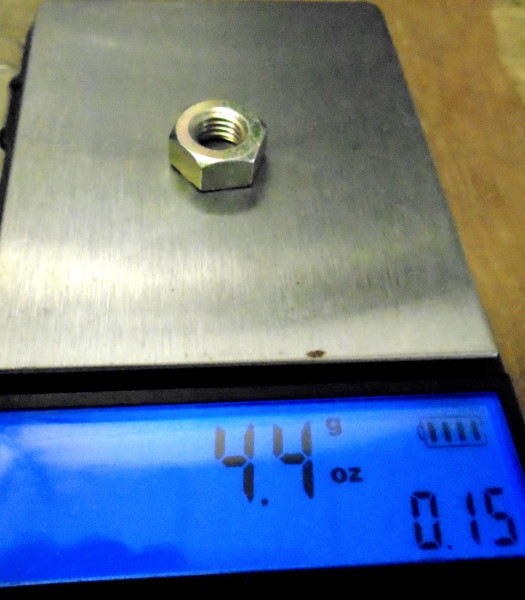

REF PC Weight (LB) 0.0097
OUT OF STOCK
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
NUT FEATURES
NUT, HEXAGON, AIRFRAME
MAX. HEIGHT (MAX)
0.250
MAX. HEIGHT (MIN)
0.219
MAX. BEARING SURFACE DIAMETER
0.502
MIN. BEARING SURFACE DIAMETER
0.490
THREAD SPECIFICATIONS
.3125-24 UNF-3B
MAX. FLATS WIDTH
0.502
MIN. FLATS WIDTH
0.490
MATERIAL
Steel
MIN. AXIAL STRENGTH
6500 LBF
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
LOCKING MECHANISM
None
COMMENTS / ADDITIONAL SPECIFICATIONS
Right-Hand Thread
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN315 REV. 10 (for latest print see NASM315)
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
AN315-5R
AN315-5R
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
