MS20392-13C17 | Aerospace Pins
| INVENTORY |
| Part Number |
MS20392-13C17 |
| NSN Number |
5306-01-105-8056 |
| Stock |
44,545 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.0039 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
BODY DIAMETER
TOL: +.000 / -.002
0.155
HEAD DIAMETER
TOL: ± .016
0.281
EFFECTIVE LENGTH
TOL: ± .010
0.531
TOTAL LENGTH
TOL: ± .010
0.703
HEAD THICKNESS
TOL: ± .016
0.046
HOLE DIAMETER
TOL: ± .010
0.070
GRADE
UNS G40370, UNS G41300, UNS G86300, UNS G87400
FINISH
Cadmium Plated, AMS-QQ-P-416, TYPE II, CLASS 2
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

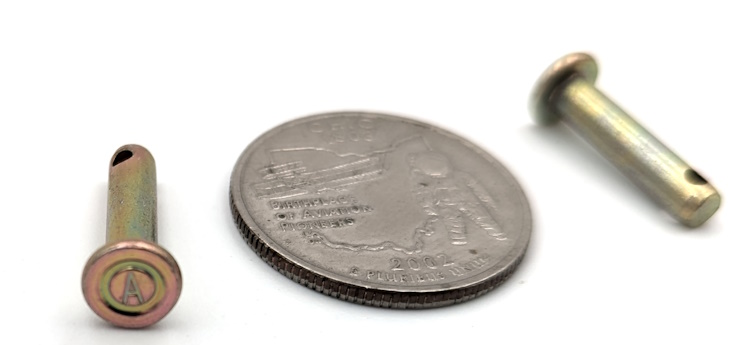

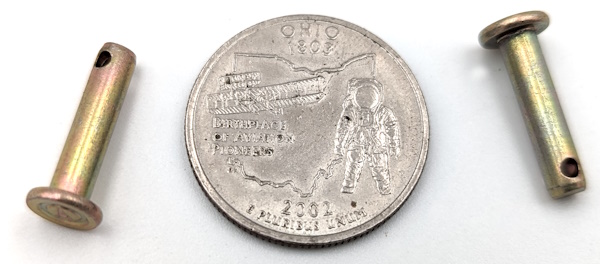

MS20392-13C17 by an American Quarter
