MS24694-S2 | STRUCTURAL MACHINE SCREW

INVENTORY
Part Number MS24694-S2
NSN Number 5305-00-057-0489
Stock 68,404*
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
*Alternate PN(s) Relation
AN509-8R5 Inactive PN
×

Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. HEAD DIAMETER
0.332
MIN. HEAD DIAMETER
0.283
HEAD RECESS
PER NASM9006
MAX. BODY DIAMETER
0.164
MIN. BODY DIAMETER
0.161
NOMINAL GRIP LENGTH
0.094
MAX. GRIP LENGTH
0.125
MIN. GRIP LENGTH
0.094
NOMINAL TOTAL LENGTH
0.344
MAX. TOTAL LENGTH
0.375
MIN. TOTAL LENGTH
0.328
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
HRC 26-32
MIN. TENSILE STRENGTH
125 KSI
FINISH
Cadmium Plated Per AMS-QQ-P-416, Type II, Class 3
THREAD SPECS
.1640-32 UNC-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF DRAWING MS24694 REV.C (for latest see NASM24694)
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

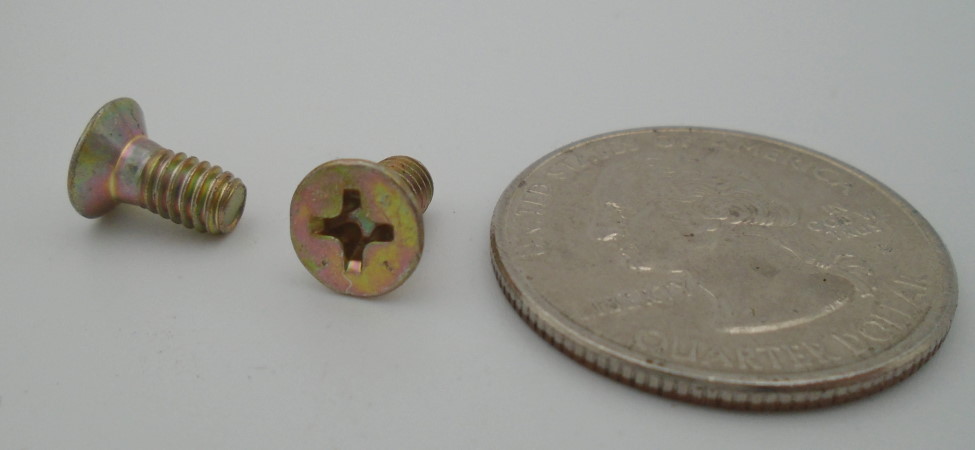

MS24694-S2
×
