| INVENTORY |
| Part Number |

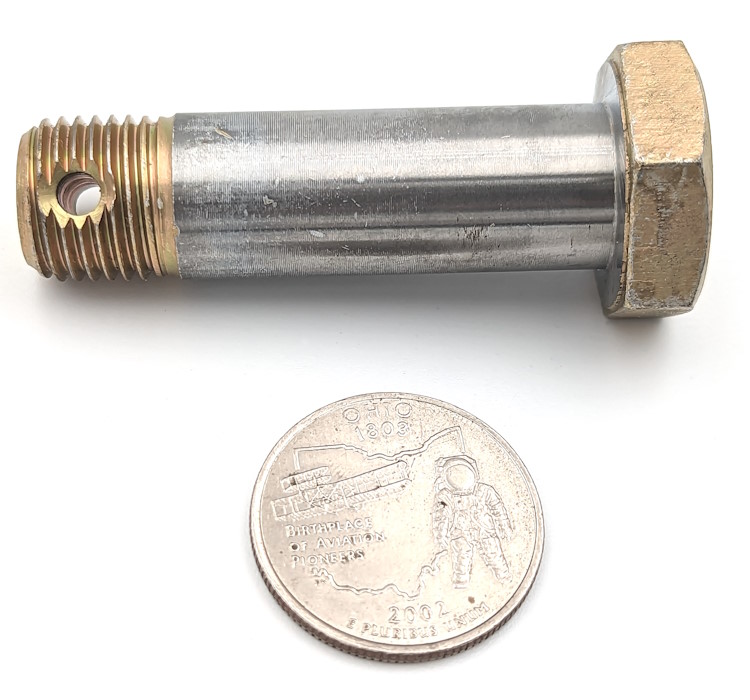

NAS464-9-23 |
| Stock |
23 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.181 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MAX. HEAD THICKNESS
0.297
MIN. HEAD THICKNESS
0.265
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5616
MIN. BODY DIAMETER
0.5611
NOMINAL GRIP LENGTH
1.438
NOMINAL TOTAL LENGTH
1.938
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE HEAD AND THREADS PER QQ-P-416, TYPE II, CLASS 2 | SHANK WITH CORROSION PREVENTIVE COMPOUND AFTER GRIND
THREAD SPECS
.5625-18 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
