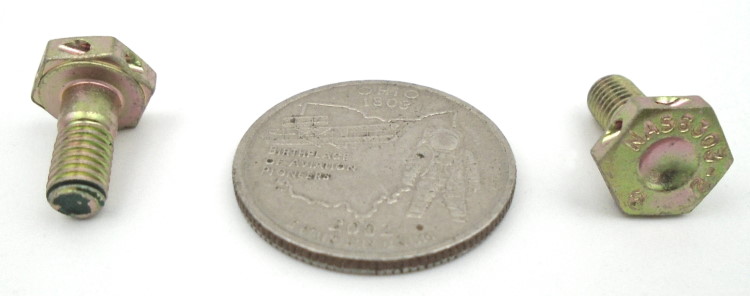

NAS6303-2H | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6303-2H |
| Stock |
12 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.0064 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.376
MIN. FLATS WIDTH (HEAD)
0.367
MIN. POINTS WIDTH (HEAD)
0.410
MAX. HEAD THICKNESS
0.125
MIN. HEAD THICKNESS
0.110
MIN. WASHER FACE DIAMETER
0.335
MAX. BODY DIAMETER
0.1895
MIN. BODY DIAMETER
0.1885
NOMINAL GRIP LENGTH
0.125
NOMINAL TOTAL LENGTH
0.448
MAX. MAJOR DIAMETER (THREADS)
0.1840
MIN. MAJOR DIAMETER (THREADS)
0.1810
MAX. HOLE DIAMETER (HEAD)
0.056
MIN. HOLE DIAMETER (HEAD)
0.046
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.1900-32 UNJF-3A
LOCKING MECHANISM
Drilled Head
