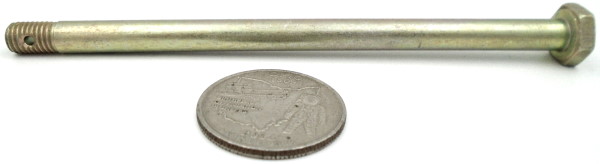

NAS6304-62D | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6304-62D |
| Stock |
30 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.064 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.439
MIN. FLATS WIDTH (HEAD)
0.429
MIN. POINTS WIDTH (HEAD)
0.480
MAX. HEAD THICKNESS
0.140
MIN. HEAD THICKNESS
0.125
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2495
MIN. BODY DIAMETER
0.2485
NOMINAL GRIP LENGTH
3.875
NOMINAL TOTAL LENGTH
4.245
MAX. MAJOR DIAMETER (THREADS)
0.2440
MIN. MAJOR DIAMETER (THREADS)
0.2410
NOMINAL HOLE DIAMETER (SHANK)
0.081
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.2500-28 UNJF-3A
