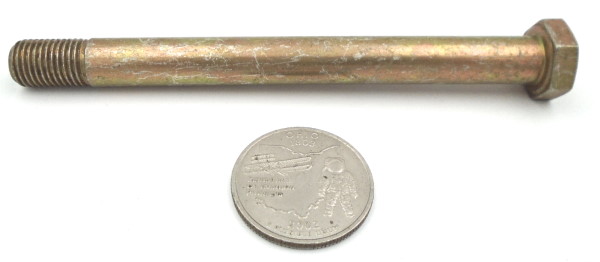

NAS6706-54 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6706-54 |
| Stock |
50 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.135 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.564
MIN. FLATS WIDTH (HEAD)
0.554
MIN. POINTS WIDTH (HEAD)
0.623
MAX. HEAD THICKNESS
0.203
MIN. HEAD THICKNESS
0.188
MIN. WASHER FACE DIAMETER
0.523
MAX. BODY DIAMETER
0.3745
MIN. BODY DIAMETER
0.3735
NOMINAL GRIP LENGTH
3.375
NOMINAL TOTAL LENGTH
3.953
MAX. MAJOR DIAMETER (THREADS)
0.368
MIN. MAJOR DIAMETER (THREADS)
0.364
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.3750-24 UNJF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
