| INVENTORY |
| Part Number |

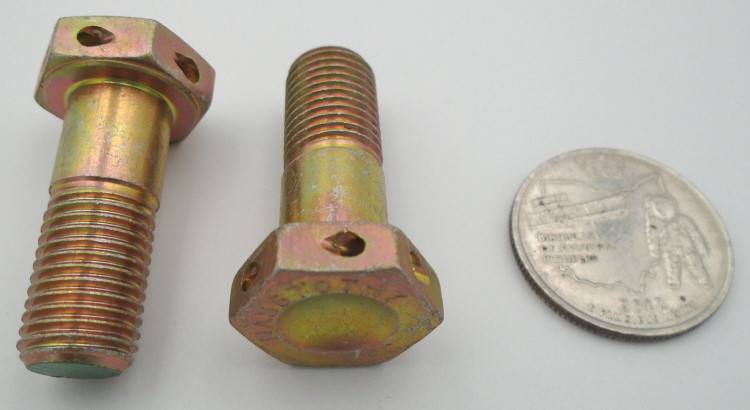

NAS6707H7 |
| Stock |
77 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

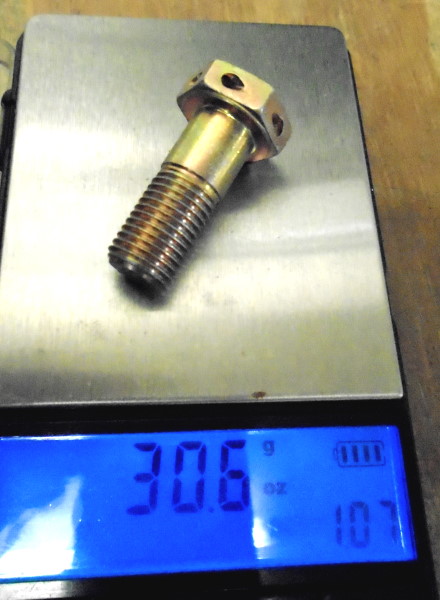

| REF PC Weight (LB) |
0.067 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.690
MIN. FLATS WIDTH (HEAD)
0.678
MIN. POINTS WIDTH (HEAD)
0.764
MAX. HEAD THICKNESS
0.234
MIN. HEAD THICKNESS
0.219
MIN. WASHER FACE DIAMETER
0.648
MAX. BODY DIAMETER
0.4370
MIN. BODY DIAMETER
0.4360
NOMINAL GRIP LENGTH
0.438
NOMINAL TOTAL LENGTH
1.132
MAX. MAJOR DIAMETER (THREADS)
0.431
MIN. MAJOR DIAMETER (THREADS)
0.426
MAX. HOLE DIAMETER (HEAD)
0.080
MIN. HOLE DIAMETER (HEAD)
0.070
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.4375-20 UNJF-3A
LOCKING MECHANISM
Drilled Heads
