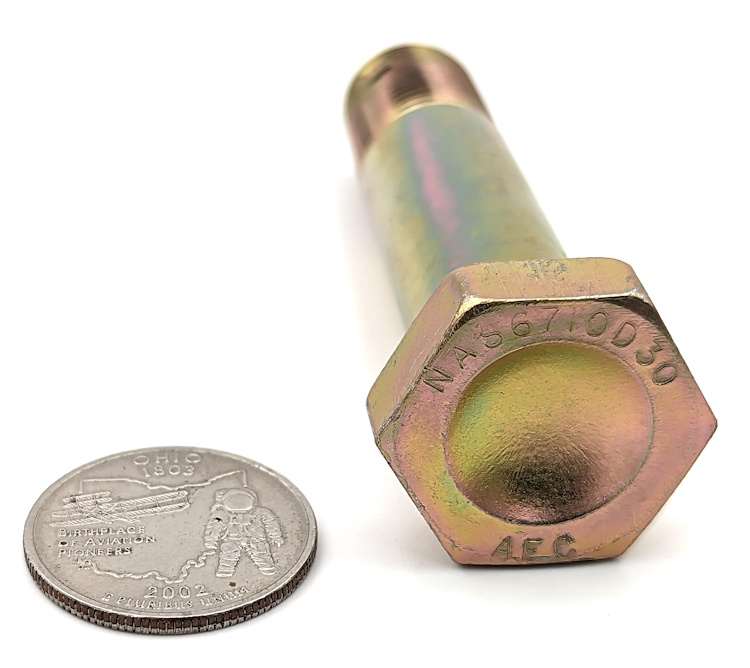

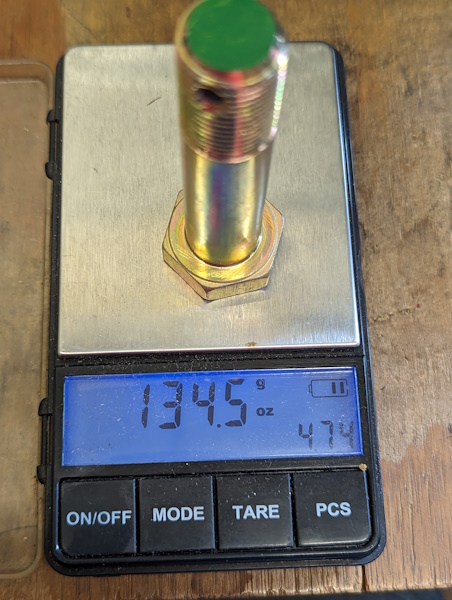

NAS6710D30 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6710D30 |
| Stock |
53 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MIN. POINTS WIDTH (HEAD)
1.050
MAX. HEAD THICKNESS
0.327
MIN. HEAD THICKNESS
0.312
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6240
MIN. BODY DIAMETER
0.6230
NOMINAL GRIP LENGTH
1.875
NOMINAL TOTAL LENGTH
2.777
MAX. MAJOR DIAMETER (THREADS)
0.618
MIN. MAJOR DIAMETER (THREADS)
0.612
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON END OF THREAD.
THREAD SPECS
.6250-18 UNJF-3A

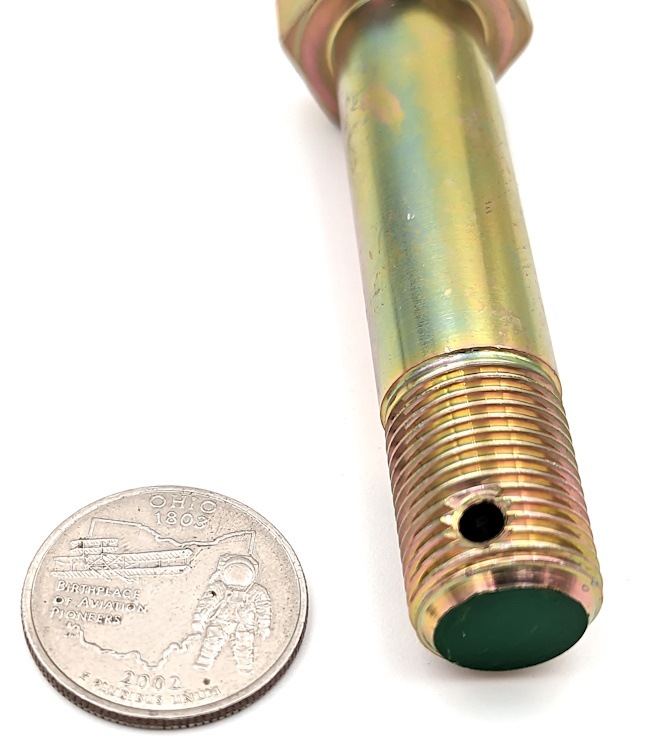

LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
