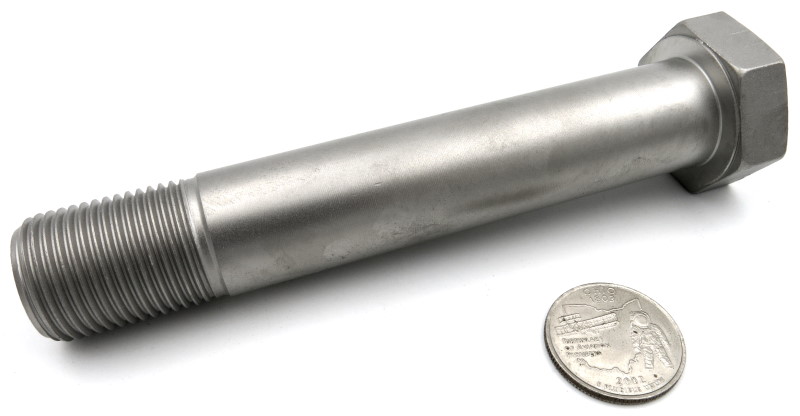

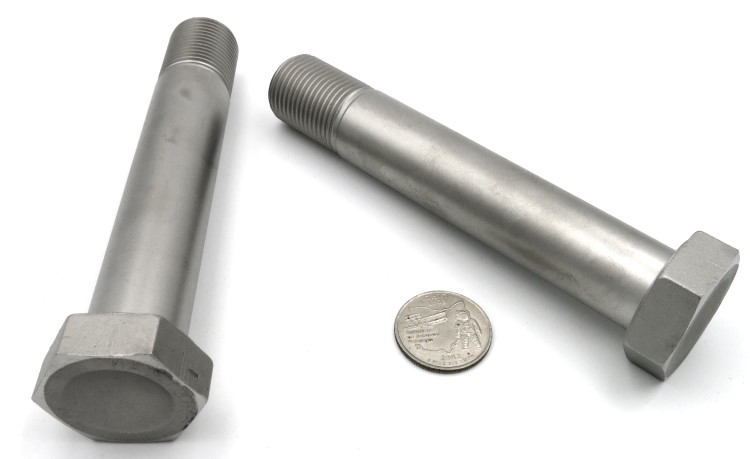

NAS6714U60 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6714U60 |

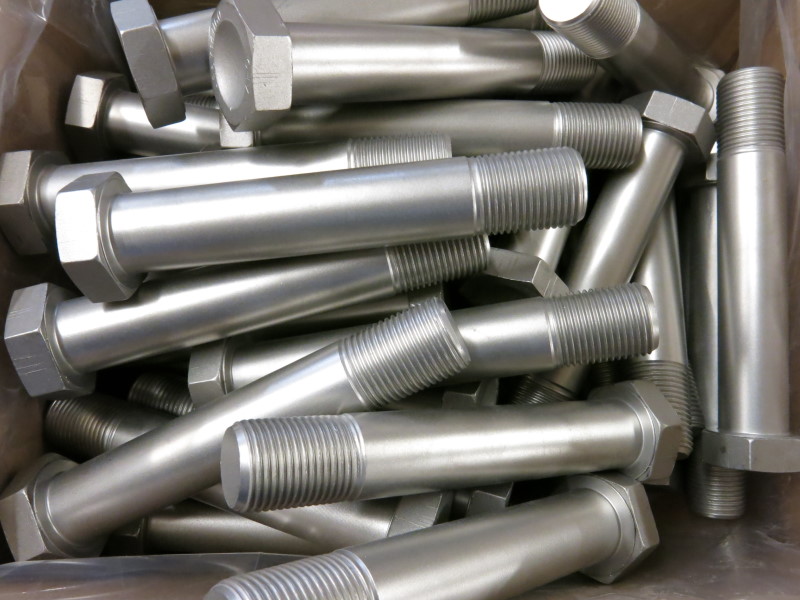

| Stock |
41 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

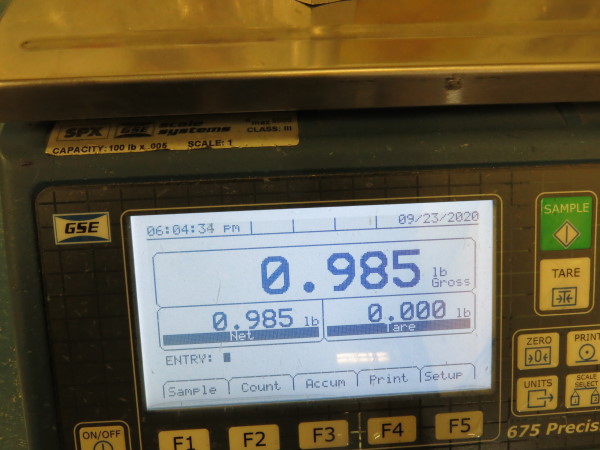

| REF PC Weight (LB) |
0.99 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.252
MIN. FLATS WIDTH (HEAD)
1.239
MIN. POINTS WIDTH (HEAD)
1.405
MAX. HEAD THICKNESS
0.453
MIN. HEAD THICKNESS
0.438
MIN. WASHER FACE DIAMETER
1.210
MAX. BODY DIAMETER
0.8740
MIN. BODY DIAMETER
0.8735
NOMINAL GRIP LENGTH
3.750
NOMINAL TOTAL LENGTH
4.934
MAX. MAJOR DIAMETER (THREADS)
0.868
MIN. MAJOR DIAMETER (THREADS)
0.861
MATERIAL
Corrosion Resistant Steel (A286 - UNS S66286)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu per AMS2759
FINISH
PASSIVATED PER AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 4
THREAD SPECS
.8750-14 UNJF-3A
